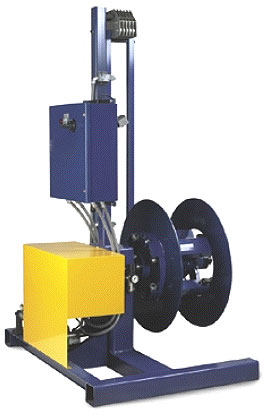

Strap Dispenser Model 455-2K

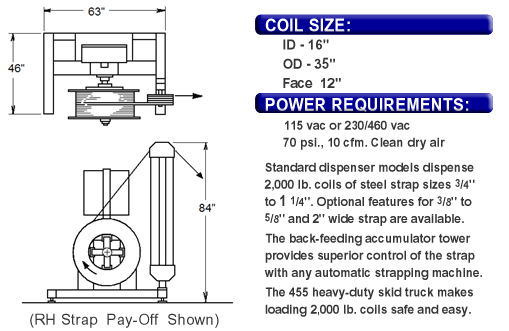

Coil Size:

•     ID - 16"
•     OD - 35"
•     Face 12"

Power Requirements:

•     115 vac or 230/460 vac
•     70 psi., 10 cfm. Clean dry air

Standard dispenser models dispense 2,000 lb. coils of steel strap sizes 3/4" to 1 1/4". Optional features for 3/8" to 5/8" and 2" wide strap are available. The back-feeding accumulator tower provides superior control of the strap with any automatic strapping machine. The 455 heavy-duty skid truck makes loading 2,000 lb. coils safe and easy.

• 230/460 vac
• Threading Covers
• Out-Of-Strap Indicator
• 2" Strap Capacity
• 3/8" to 5/8" Strap Capacity
• 90 Degree Strap Take Off
• Model 456 Skid Truck for 2,000 lb. Coils
• Interconnection Package for use with Model 440 Cut-to-Length Dispenser
• Other Voltages are Available - Consult Factory
• Holds the equivalent of ten oscillated coils
• Reduces change-over times and risk of injury
• Dispenses 2,000 lb. Coils of steep strap - 3/8" to 1-1/4"
• Coil Size: 16" I.D./35" O.D./12" Face
• Back-feeding accumulator works with all automatic strapping equipment
• Specify LH or RH "Strap Pay-off" at time of order

Standard dispenser models dispense 2,000 lb. coils of steel strap sizes 3/4" to 1 1/4". Optional features for 3/8" to 5/8" and 2" wide strap are available. The back-feeding accumulator tower provides superior control of the strap with any automatic strapping machine.
