Top Seal Strapping Machines

  Top Seal Strapping Machines


Top Seal Strapping
Top Seal Strapping Machines are widely used in industry to secure cartons, bundles, and unitized loads - quickly, easily, and economically. We offer the flexibility for either automatic or operator controlled strap application and package positioning to fit the individual and the changing requirements of industry. The Top Seal machine has an indexing head and track system that seeks the top of the package for a tight and secure strap. The modular strap track system can be configured to suit any package size and shape.



Top Seal Strapping

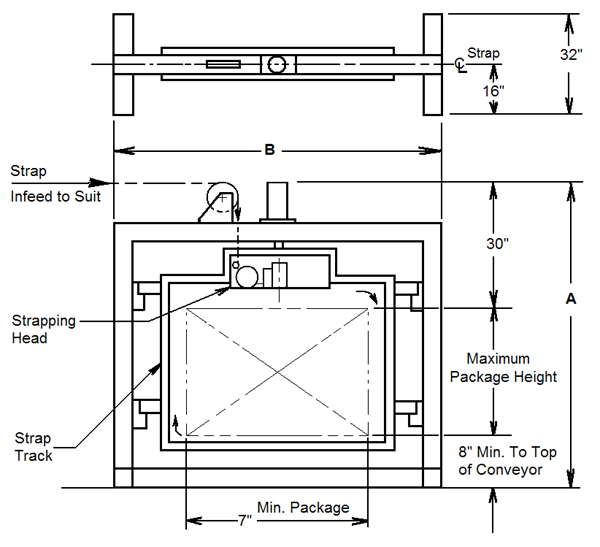

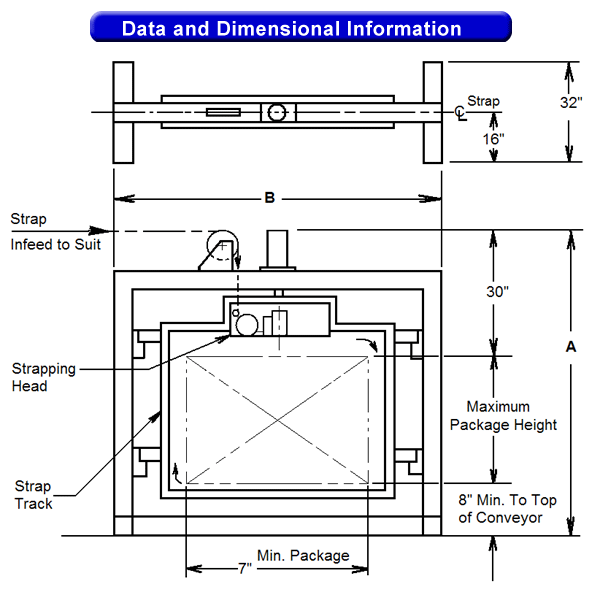

Line Layout


Power Requirements:

  • Electrical: 110VAC, 60HZ,
    15 AMP
  • Pneumatic: 90 psi,
    60 cfm minimum



General Specifications:

  • Strapping Head functions are
    PLC controlled.
  • Heavy Duty Structural Steel Tubing
  • Welded and Bolted Construction
  • Heavy Duty Rollers & hardened Steel Tracks - Indexing Head Carriage
  • Stainless Steel Strap Track
    System

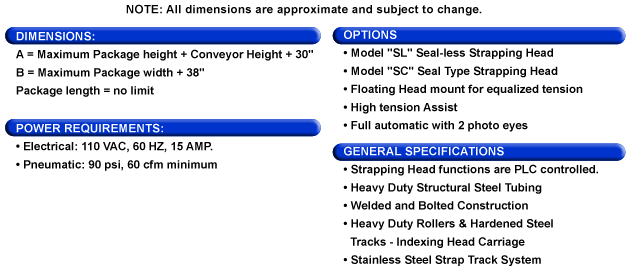

Dimensions:

  • A = Maximum Package Height + Conveyor Height + 30"
  • B = Maximum Package Width + 38"
  • C = Package Length = No Limit

Options:

  • Model "SL" Seal-less Strapping Head
  • Model "SC" Seal Type Strapping Head
  • Floating Head mount for equalized tension
  • High Tension Assist
  • Fully automatic with 2 photo eyes


NOTE: All dimensions are approximate and subject to change.
