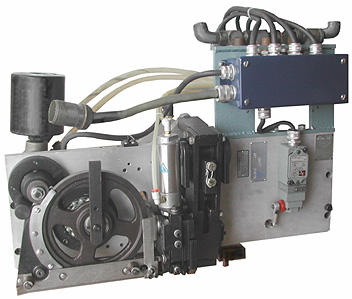

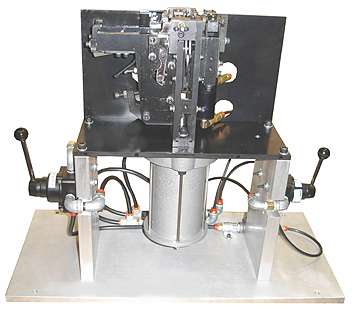

Strapping Heads Model SL    "Seal-Less Strapping Heads" For 3/8" to 3/4" x .023 max. Steel Strapping and Banding Materials     The Seal-less joint is made by cutting a sealing profile into the two overlapping strap ends by the action of a die (fig. 1) and a punch (fig. 2) The "SL" Strapping Head eliminates the cost of seals and the associated expense to inventory and ordering them. The "SL" Head is primarily suited for flat surfaces. The head is a modular design with the In-feed Guide & Strap Straightening, Gripper/Cutter and Sealing assemblies all being independent modules that can be replaced in a matter minutes with a spare module; Keeping down time to and absolute minimum. Our Model SL Strapping Head has proven itself over the years in many 24/7 applications in the Automotive, Tobacco, Concrete Block, Lumber, and Container Industries. Note: This Strapping Head is an economical replacement if you currently have an old, worn out or obsolete Strapping Head. We can easily retrofit your current strapping machine at a fraction of the cost of buying a new machine.. Contact us for more details and information. Model SL Specifications • Strap width and type: 3/8" to 3/4" - Machine Grade, Regular Duty Flat Steel Strapping. • Strap thickness: .015 to .023 • Seal-Less strap joint. • Minimum sealing Surface: 5" • Pneumatic manifold assembly, valves, fittings and tubing. • Filter-Regulator-Lubricator assembly. • Air Motor - Strap Feed: 500 RPM/430 Lbs pull/ 3fps Strap Feed Rate 860 RPM/290 Lbs pull/ 5fps Strap Feed Rate • Pneumatic Power Requirements: • 80" P.S.I., Minimum • Feed/Tensioning cycle, 45 CFM • Sealing cycle , .178 cu. ft • 3/4" Air Line to Machine. • Electrical Power requirements: 110V, 1-Phase 60 HZ Weight: 100 lbs Optional Equipment • Test/Service Stand - Allows for "off the machine" service and testing of all of the strapping head functions. • Floating Head Mounting System - Equalizes the strap tension with larger and or ridged packages • HI-Tension Assist - For applications where the standard air motor tension is not adequate. This device is normally used in conjunction with the Floating Head Mounting System.

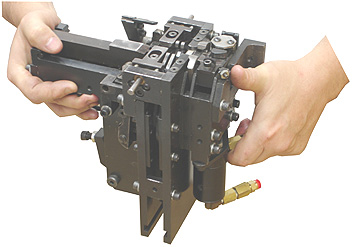

Model SC   "Seal Type Strapping Heads" For 3/8" to 3/4" x .023 Steel Strapping and Banding Materials Note: This Strapping Head is an economical replacement if you currently have the old obsolete Acme/Interlake Seal type Strapping Heads Contact us for more details and info. The SC Strapping Head is specifically designed for strapping objects with a limited or irregular shaped sealing surface and for applications where the additional security of a "Seal" is required to prevent the exposed seal joint from accidentally being opened. Typical applications are bundles of pipe, bar stock, slit coils, tobacco bales and paper rolls using "tight edge" or "curved edge" strapping material. The unique feature of the "SC" Strapping Heads is the quick change modular "sealing mechanism". The majority of the "SC" Strapping Head functions are in this module. It is designed for easy and fast replacement. It includes seal feed, seal crimping, seal and strap cut-off and gripping functions. The unit can be removed and replaced with a back-up unit in less than 5 minutes. This provides you the option of stocking a replacement module(s) that you can service yourself, or you can send it to Triangle Technologies, for factory service, repair and adjustment without interrupting normal production. The unit weighs less than 35 lbs and is easily and economically sent by UPS or FedEx. Triangle Technologies Model "SC" Strapping Head also features the unique "seals in a coil" that employs positive one at a time seal feeding. With the seal dispensers1 ability to hold 2500 double notch or 4000 single notch seals downtime is greatly reduced when compared to reloading a "magazine" of seals that typically hold only about 300 seals. Model SC Specifications • Strap width and type: 3/8" to 3/4" - Machine Grade, Regular Duty Flat, Tight Edge and Curved Edge. • Strap thickness: .015 to .023 • Double notch or Single notch seal joint. • Pneumatic manifold assembly, valves, fittings and tubing. • Filter-Regulator-Lubricator assembly. • Pneumatic Power Requirements: 80" P.S.I., Minimum Feed/Tensioning cycle, 18-20 CFM Sealing cycle, .178 cu. ft 3/4" Air Line to Machine. • Electrical Power requirements: 110V, 1-Phase 60 HZ • Seal Coil Dispenser - 4000 Single or 2500 Double Notch Seals Optional Equipment Test Stand/Service Fixture The Test Stand allows for "off-the-machine" service and repair of the Modular Sealing Mechanism on your SC Strapping Heads. You can inspect, adjust, repair and test the mechanisms components that are associated with strap gripping, strap cut-off, seal feed, sealing, and seal cutoff. The use of this Test Stand to adjust the sealing mechanism and produce sample seals before the mechanism goes back into the production strapping head reduces down time and improves the overall up time of your Strapping System.
