Strapping Machines I Strapping Heads I Strap Choppers

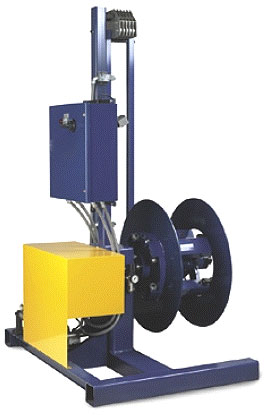

Strap Dispensers From 100 to 1,000 lb. coil capacities MODEL "455-1K" 1,000 lb. Strap Dispenser • Holds the equivalent of ten oscillated coils. • Reduces change over times and risk of injury. • Dispenses 1000 lb. Coils of steel strap - 3/8" to 1-1/4". • Coil Size: 16" I.D. / 29" O.D. / 12" Face • Out of Strap Indicator • Back feeding accumulator works with all automatic strapping equipment. Power requirements: • 110 or 220/440 vac • 70 psi, 10 cfm clean air MODEL "455-2K" 2,000 lb. Strap Dispenser • Holds the equivalent of ten oscillated coils. • Reduces change over times and risk of injury. • Dispenses 2000 lb. Coils of steel strap - 3/8" to 1-1/4". • Coil Size: 16" I.D. / 35" O.D. / 12" Face • Out of Strap Indicator • Back feeding accumulator works with all automatic strapping equipment. Power requirements: • 110 or 220/440 vac • 70 psi, 10 cfm clean air

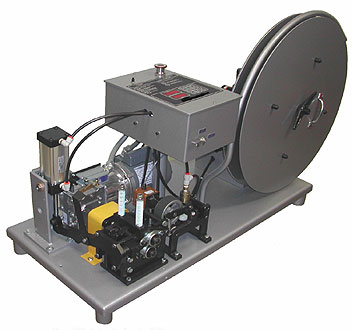

MODEL "440" Cut-to-Length Strap Dispenser Designed and recommended for packaging departments and insulation contractors that require high volumes of pre-cut strapping and banding material. Reduces labor costs and eliminates strap waste. Simply enter the length of the cut and the quantity of straps into keypad. The dispenser does the rest. Industry proven on jobs requiring 50,000 cuts per day. Solid state controls and working parts designed for years of rough use provide this machine with an exceptional service life. If You Pre-Cut Your Strapping, This Machine Will Save Labor and Material. Round End Cut Option Available - Plastic Strapping Option Available General Specifications: Dimensions: 21"W x 52"L x 48"H Strap Sizes: Steel, 3/8" x .015 inch to 2" x .050 Coil Size: 16"I.D. x 28"O.D. (max) Ribbon or Oscillated wound Rate: 100 Feet per Minute Strap Length: 1 inch to 1,000 feet Strap Quantity: 1 to 9,999 pieces per setting Electrical: 110V, 60 HZ, 1 Ph (other voltages available consult factory) Pneumatic: 80 psi Shipping Weight: 390 lbs Options and Optional Equipment • Round Cut Strap Ends (includes Die Set and Ejector device) Minimizes risk of injury from sharp square cut ends • Plastic Strapping (includes grip type Feed Wheel, precision strap Guides and reel extension) • 16" Legs with Swivel/Locking Casters • Pneumatic Tires and Lift Handles (makes transporting the 440 to and from and around the job site or your plant very easy) MODEL "456" Heavy Duty Skid Truck Specifically designed for effortless loading of 1,000 lb. coils on the 455 dispenser.
